• Designed for e-bikes that use CAN Bus communication protocol -- CAN 2.0A or 2.0B

A simple but efficient design --

•  Featuring easy-to-read display, and easy-to-use buttons

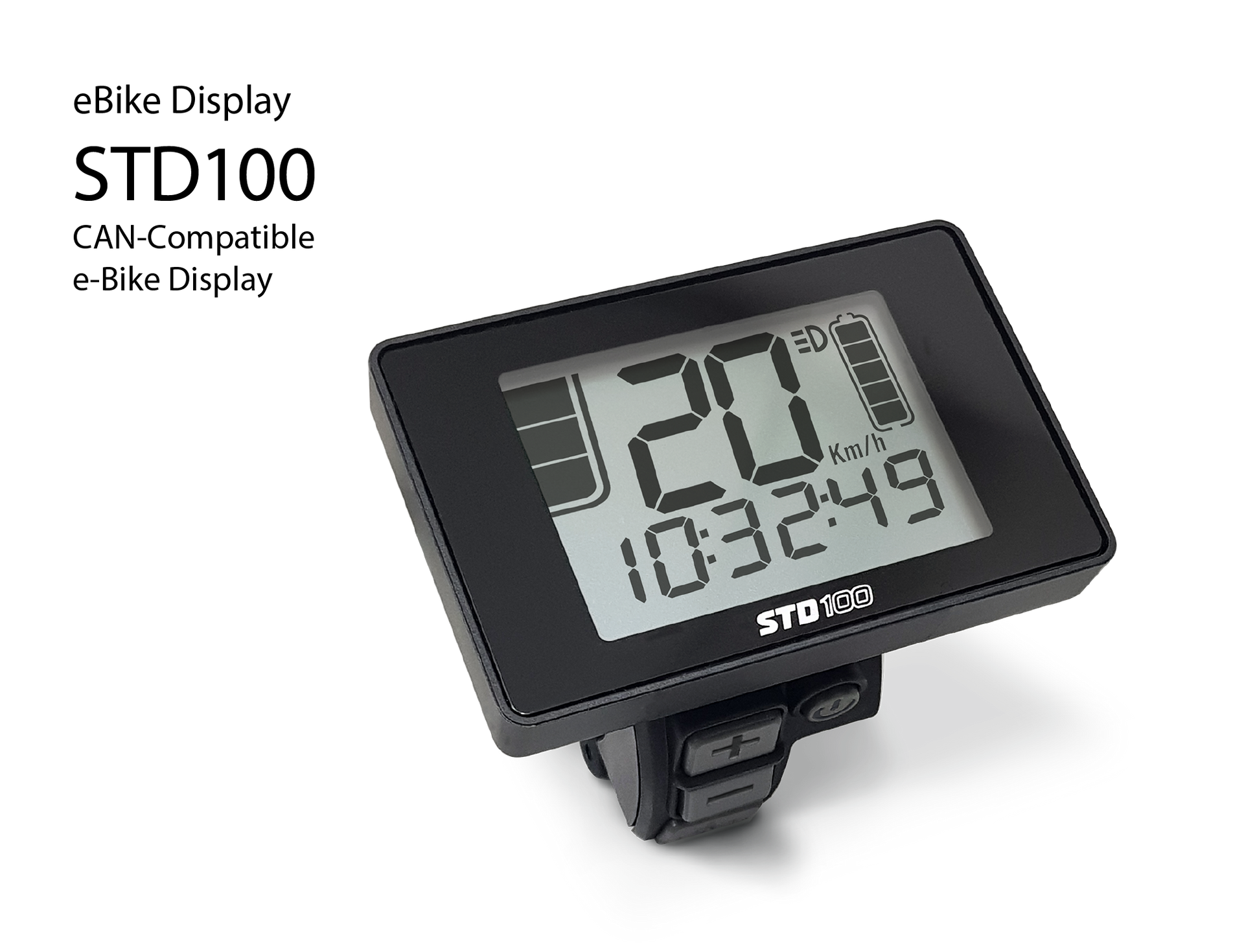

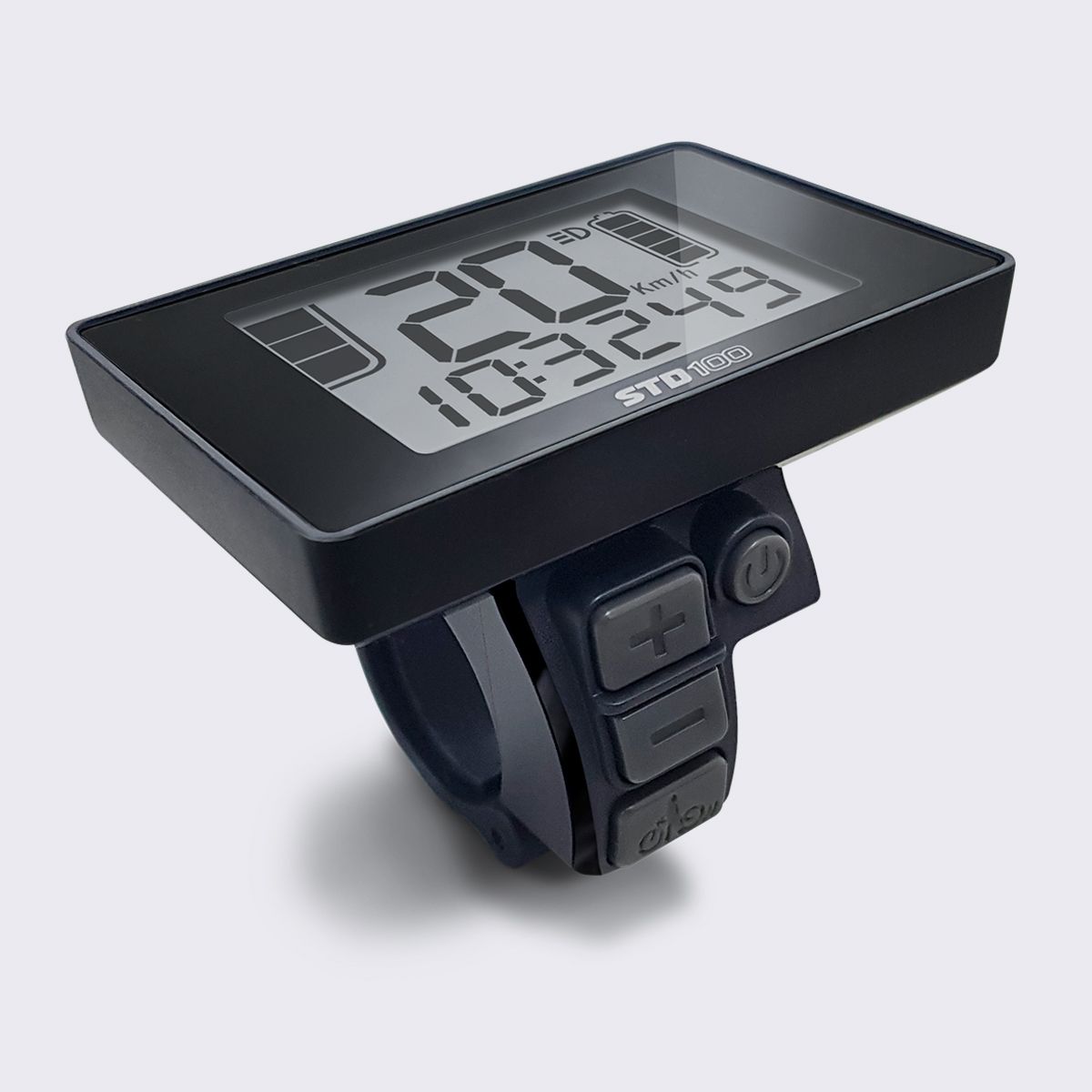

• The LCD display shows four indicators that you use most commonly, including speed, bar-graph power assist level, bar-graph battery capacity, and one of the other functions.
• You can select one of the following functions for the display.
• The other functions include battery remaining mileage, trip meter, odome-ter, riding time, average speed, maximum speed, clock and error code etc.

The functions are optional and can be set by a setting box.

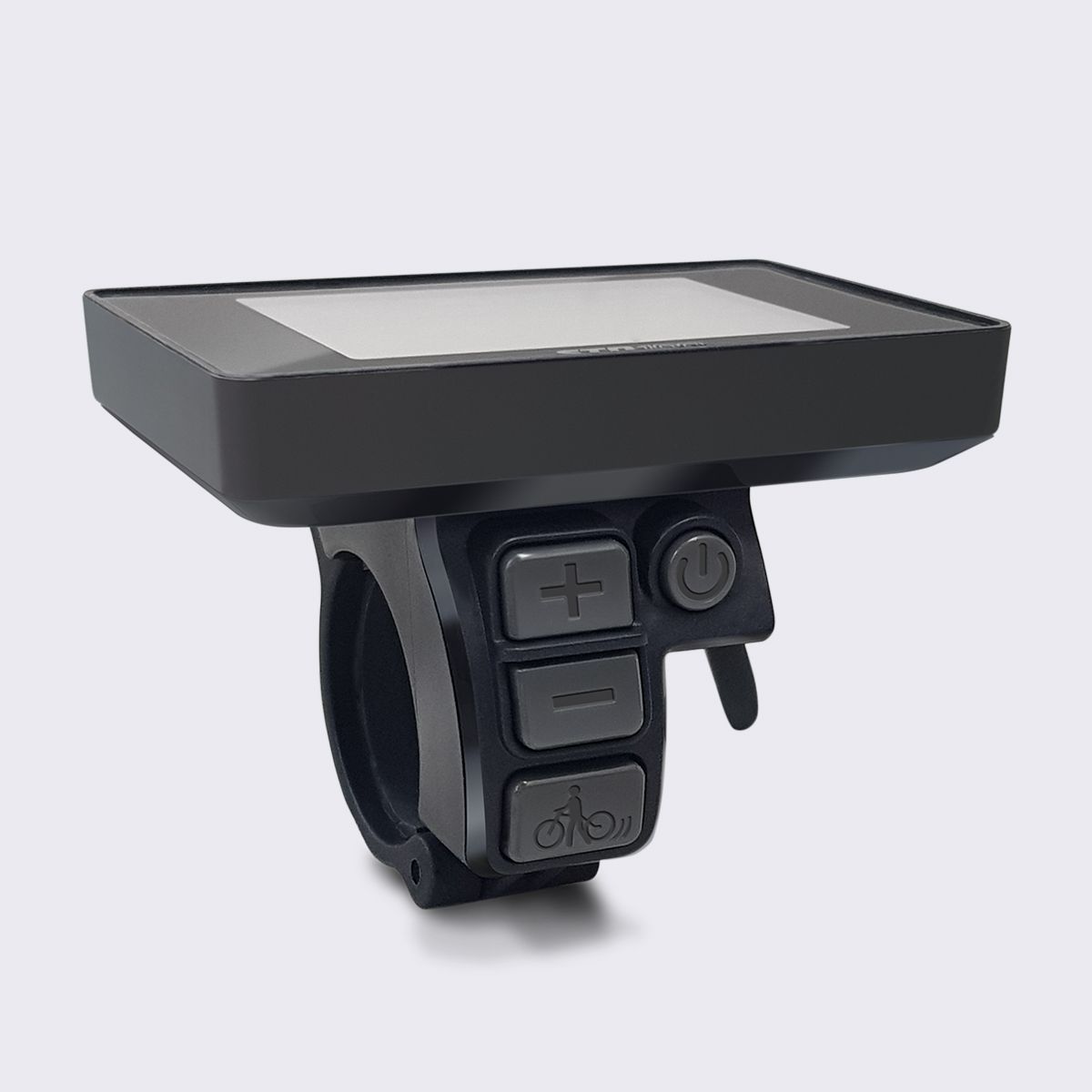

• The ergonomic design of 4 buttons below the display lets you easily operate the computer with one thumb during riding or walking!
• The 4 buttons include: Up/down buttons for power assist level, push-walk button and Power on/off (or Mode) button. Backlight or headlight switch (on/off) is optional.
• Built-in EL lamp backlight
• Waterproof grade: IPX7 (display only) / IPX6 (connector)

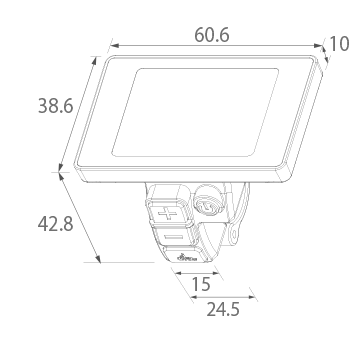

38.6
