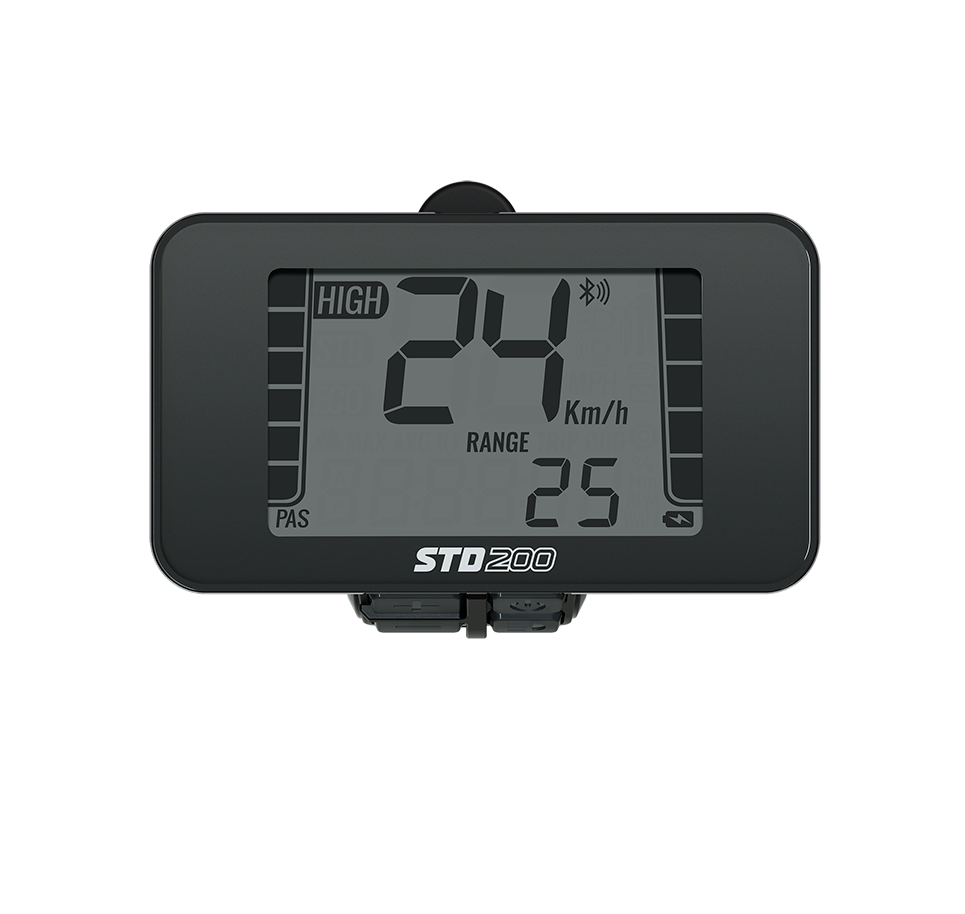

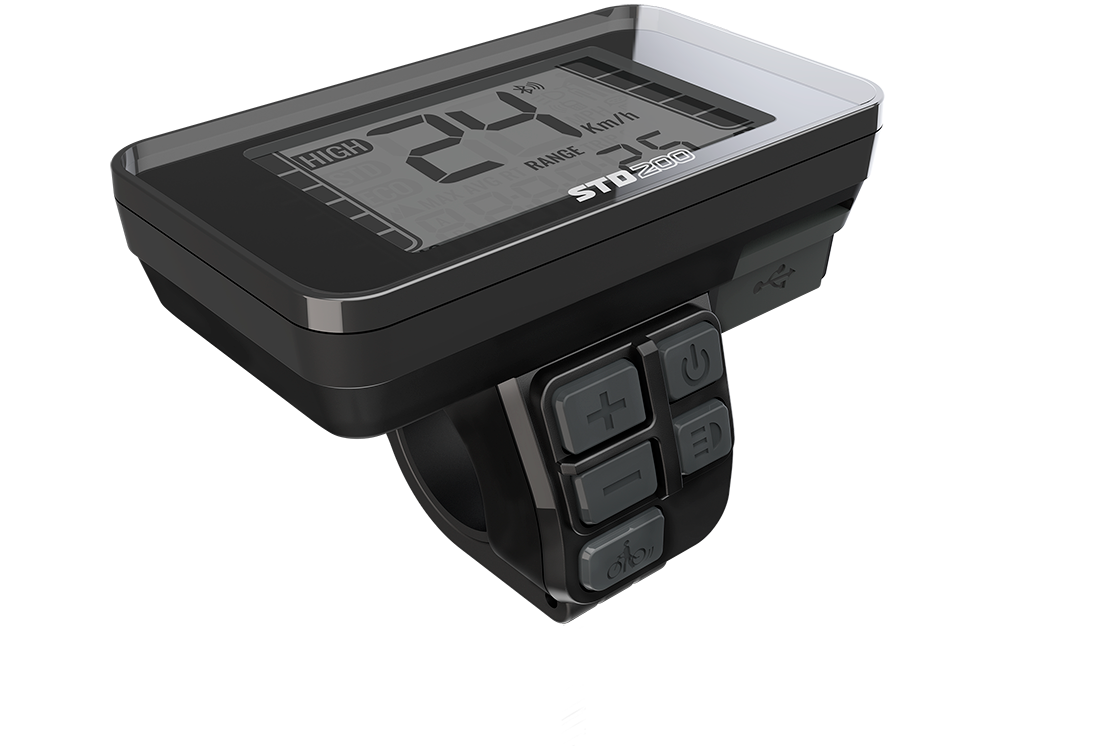

- STD200 with LCD backlight display and headlight switch control function.LCD backlight and headlight are useful during night time.

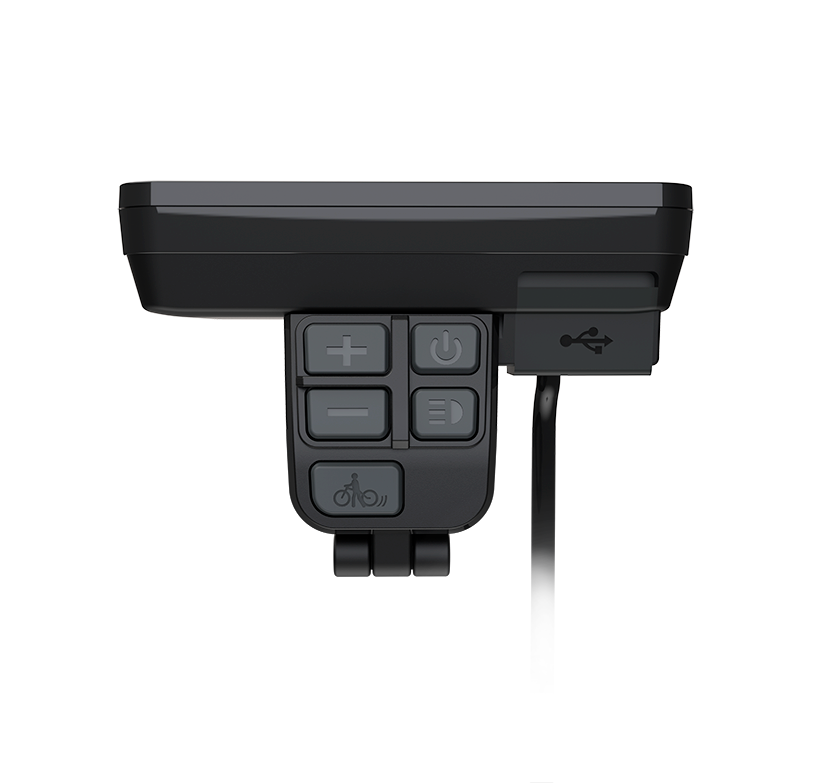

- There are 5 buttons on the display unit for Power on/off, Mode select, Assist level (up/down) adjustment, Push and walk and Light on/off.
- Support CAN bus 2.0A or 2.0B protocol.
- Display functions
- Speed, bar graph of assist level, battery level indication, push-assistance, headlight on/off, error code indication.
- Selectable functions for the display
- Battery remaining mileage, trip distance, ODO, riding time, average speed, maximum speed, clock, current altimeter, current temperature, current cadence, current power output, average cadence, maximum cadence, e-bike battery capacity percentage, parameters settings etc.
- Also Included ODO, Clock, Unit, Wheel for Parameter settings adjustment.
- STD200 supports quick parameters setup function by special set box.
- Some selectable functions and parameter settings can be disabled by special set box.
- Wireless function of Bluetooth low energy technology
- If STD200 connection with Echowell e-Sync connection app STD200 will display ANCS (Apple Notification Center Service), and current altimeter (by smart phone GPS).
- And the STD200 e-bike information auto sync display on the app side large screen as below during your riding.
- App can auto recording your activity GPS track, save on the app or app or upload to the your Strava account.
- USB 5V output to external devices
- Output DC 5V 500mA max. or 1000mA max. ( optional )
- Waterproof grade: IPX7 (display only) / IPX6 (connector)
