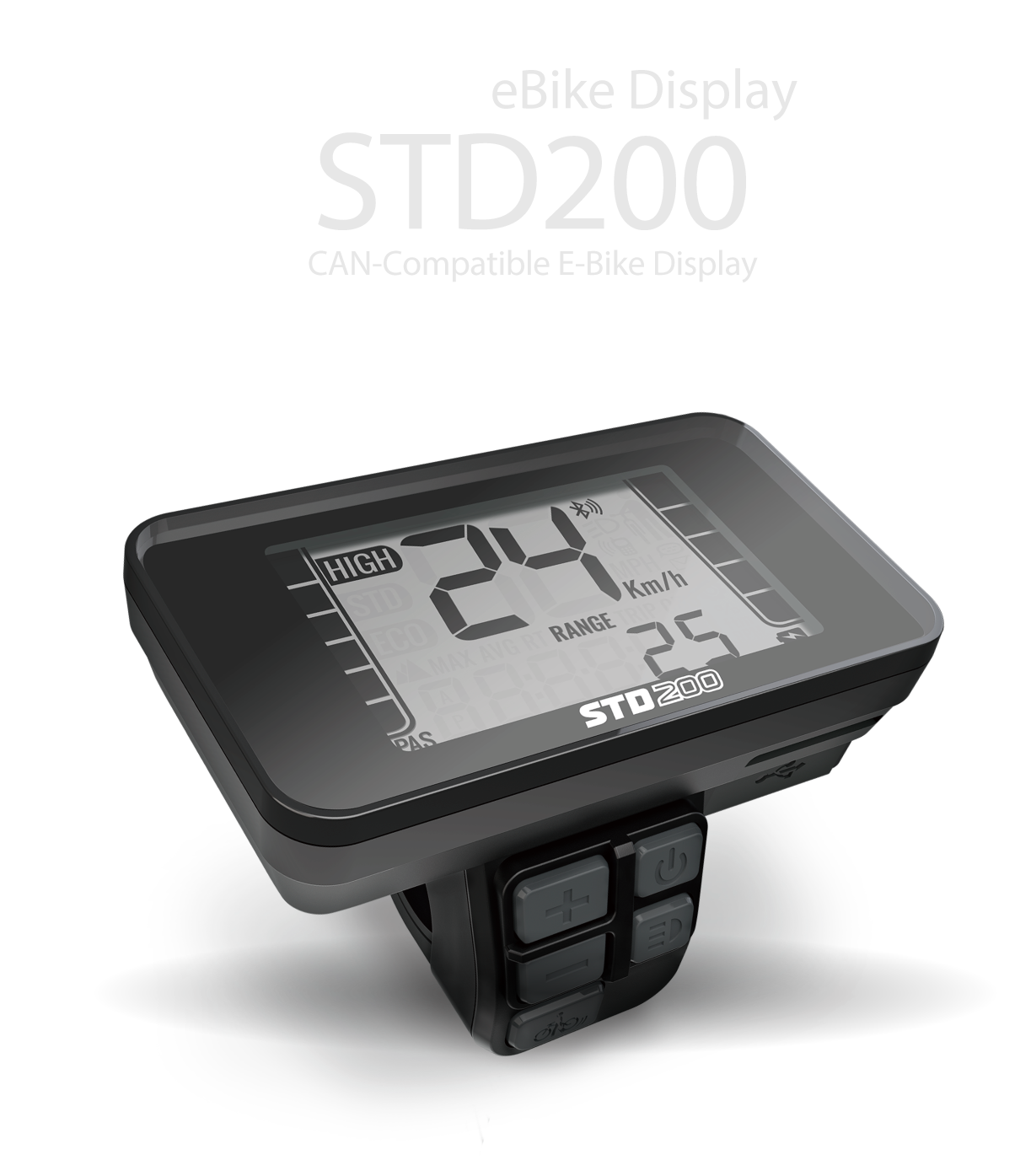

• STD200 with LCD backlight display and headlight switch control function.LCD backlight and headlight are useful during night time.
• There are 5 buttons on the display unit for Power on/off, Mode select, Assist level (up/down) adjustment, Push and walk and Light on/off.
• Support CAN bus 2.0A or 2.0B protocol.
• Display functions
  Speed, bar graph of assist level, battery level indication, push-assistance, headlight on/off, error code indication.
• Selectable functions for the display
  Battery remaining mileage, trip distance, ODO, riding time, average speed, maximum speed, clock, current altimeter, current temperature, current cadence, current power output, average cadence, maximum cadence, e-bike battery capacity percentage, parameters settings etc.
  Also Included ODO, Clock, Unit, Wheel for Parameter settings adjustment.
• STD200 supports quick parameters setup function by special set box.
  Some selectable functions and parameter settings can be disabled by special set box.
• Wireless function of Bluetooth low energy technology
  If STD200 connection with Echowell e-Sync connection app STD200 will display ANCS (Apple Notification Center Service), and current altimeter (by smart phone GPS).
  And the STD200 e-bike information auto sync display on the app side large screen as below during your riding.
  App can auto recording your activity GPS track, save on the app or app or upload to the your Strava account.
• USB 5V output to external devices
  Output DC 5V 500mA max. or 1000mA max. ( optional )
• Waterproof grade: IPX7 (display only) / IPX6 (connector)
